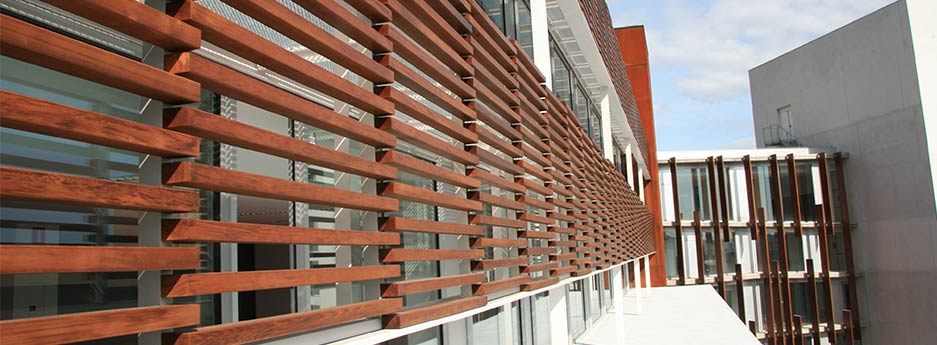

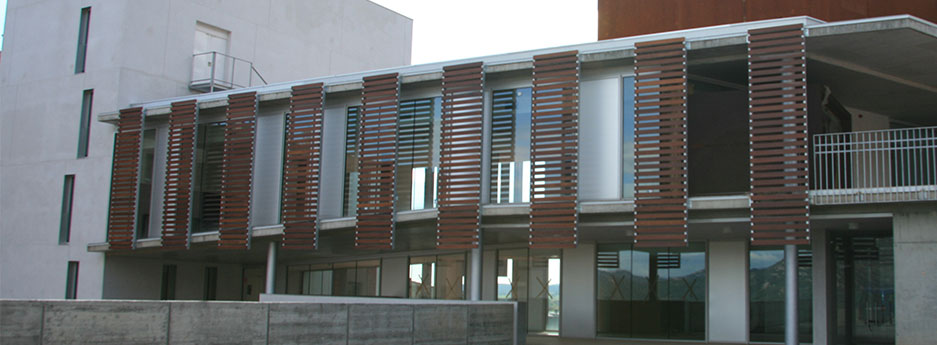

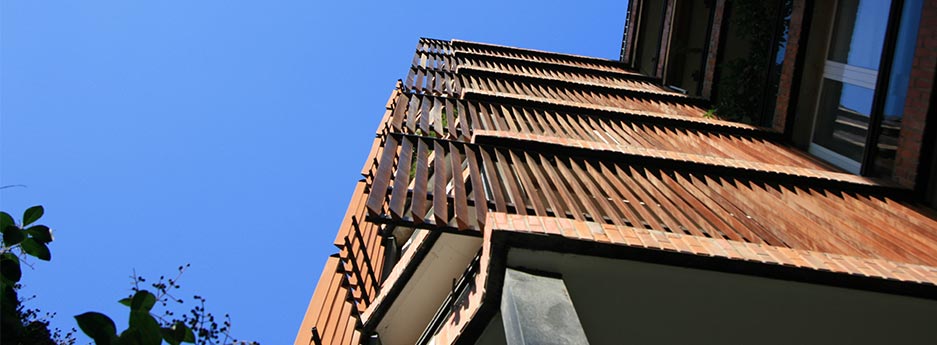

Brise soleil or screen louvre system with continuous wooden blades.

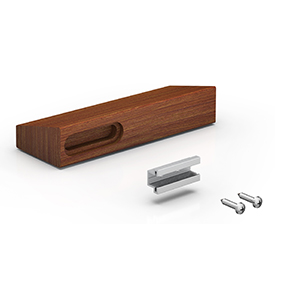

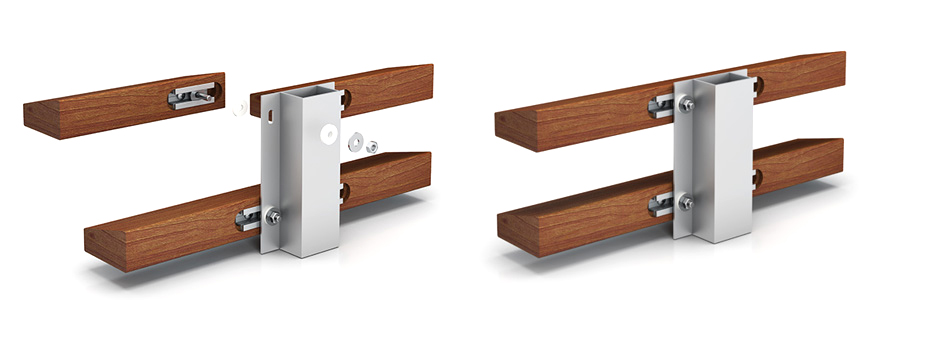

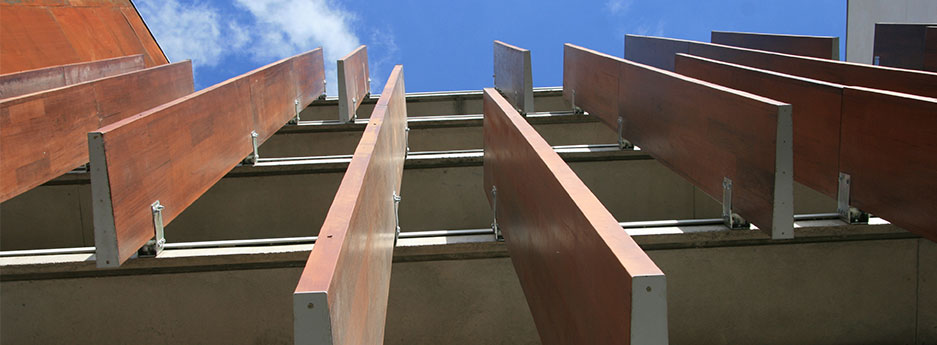

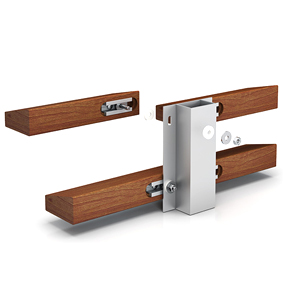

Securing the blades to the structure is by means of special accessories embedded in the blades.

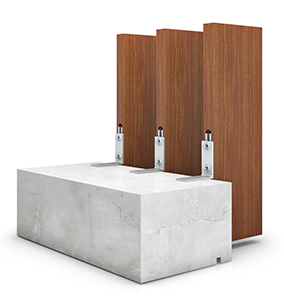

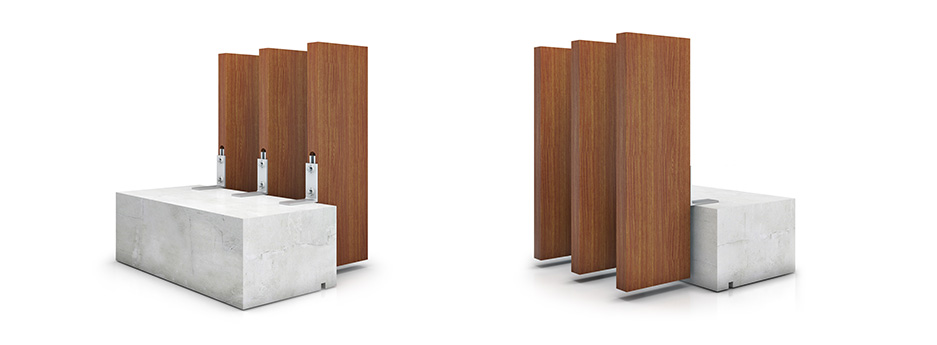

The brise soleil supporting structure is supported from the inside.
Wooden blades. Red Cedar, Douglas Fir, Larch, Chestnut and Heat treated Pine
Extruded aluminium transoms. 6063-T5 alloy
Optional. Galvanised steel transoms.
Extruded aluminium securing fixings. 6063-T5 alloy
Stainless steel nuts and bolts.
Variable distance between blades.

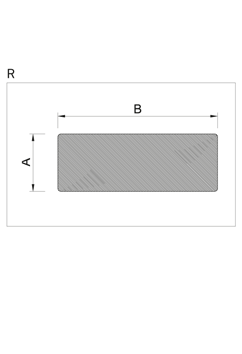

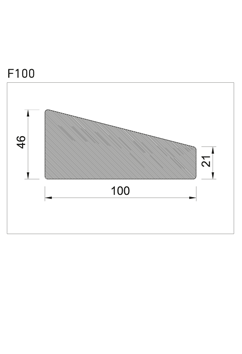

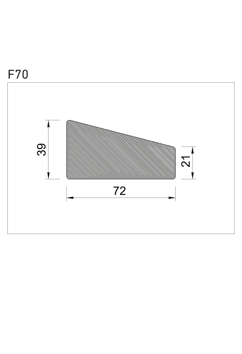

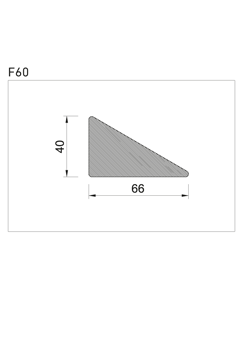

8 models with different format blades
Canopies and pergolas
Natural wood (class N)
Lasur die 1 coat (class A)
Lasur die 2 coats + sand (class A+)
Transoms and accessories
RAL chart lacquer (gloss or matt) or textured. Qualicoat seal
Anodised. Qualanod seal
GIRASOL - FIXED WOODEN BLADE BRISE SOLEIL
